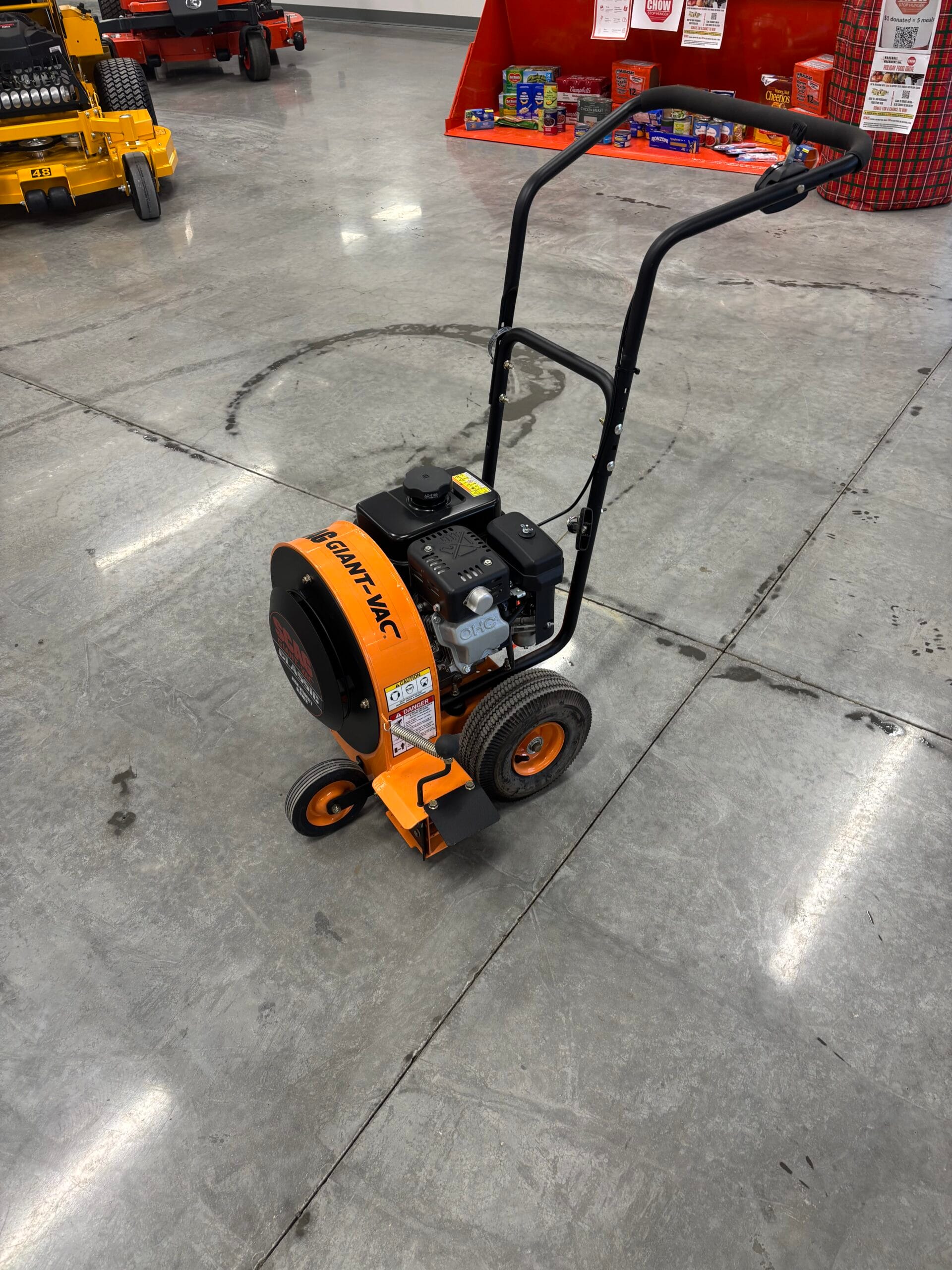

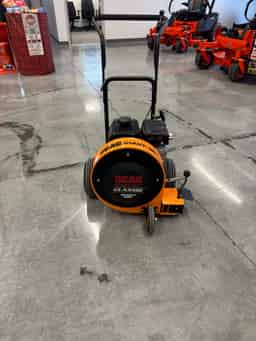

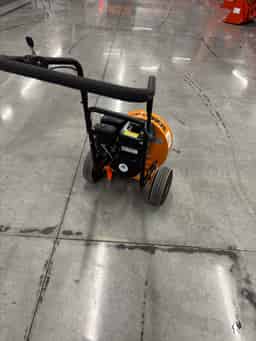

BRAND NEW SCAG LBC15-SP170 DEBRIS BLOWER
Stock Number: B10772
CASH PRICE: $725.00
LOCATED AT: 12 Equipment Drive, Binghamton, NY 13904
More information on the Scag LBC15-SP170 Debris Blower
ENGINE
General Type ……………………………………………………………………………………Heavy Duty Industrial/Commercial Gasoline
Brand………………………………………………………………………………………………………………………………………………… Subaru
Engine Model:
(Scag Giant-Vac Model LBX9152S)…………………………………………………………………………….Subaru Model # SP170
Displacement:
Subaru SP170…………………………………………………………………………………………………………………………………. 169cc
Cylinders……………………………………………………………………………………………………………………… 1 with Cast-Iron Sleeve
Governor…………………………………………..Centrifugal Flywheel Type Set to 3,600 RPM at maximum load (+/- 100 RPM)
Idle Speed:
Subaru……………………………………………………………………………………………………………….. 1,400 RPM (+/- 150 RPM)
Carburetor ………………………………………………………………………………………………………………………………………Float Type
Fuel………………………………………………………………………….. Non-Leaded Gasoline with a Minimum Octane Rating of 87
Fuel Capacity………………………………………………………………………………………………………………………. 0.95 Gallon (3.4L)
Lubrication Type………………………………………………………………………………………………………….. Mechanical Splash Type
Oil Capacity …………………………………………………………………………………………………………………….. 0.260 Gallon (0.98L)
Starter:
Subaru…………………………………………………………………………………………………………………………………. Recoil Starter
Ignition System……………………………………………………………………………………………..Solid State Transistorized Magneto
Air Filter ……………………………………………………………………………………………………………………………………. Dual Element
BLOWER
Impeller Diameter ………………………………………………………………………………………………………………..Balanced 15″ Steel
Number of Blades……………………………………………………………………………………………………………………………………. 4
CFM (cubic feet / min.) ……………………………………………………………………………………………………………………………. 1392
Discharge Control…………………………………………………………………………………………………………………………..Front / Side
3.3 Weights and Dimensions
Length………………………………………………………………………………………………………………………………………………………43″
Width ……………………………………………………………………………………………………………………………………………………….27″
Height ………………………………………………………………………………………………………………………………………………………40″
Weight ………………………………………………………………………………………………………………………………………………….. 102#
Wheels:
(1) Front………………………………………………………………………………………………………………. 6 X 1.50 Semi-Pneumatic
(2) Rear ……………………………………………………………………4.10 X 3.50-4 Two-Ply Pneumatic Tubeless, Radius Edge
Tire Pressure:
Rear………………………………………………………………………………………………………………………………………………. 20 PSI
