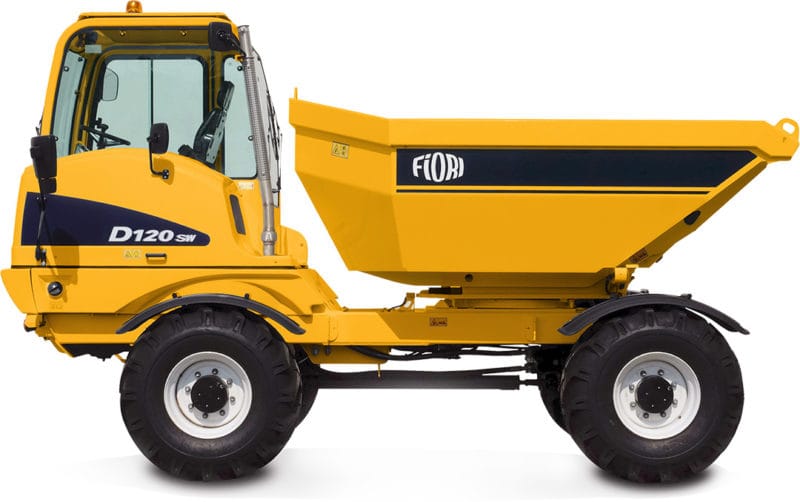

D 120 SW Site Dumper
Call for Pricing
Price
Fiori D 120 SW Specifications
Engine
| Engine | Tier IV |
|---|---|
| Model | KOHLER series KDI 3404 TCRSCR |
| Type | Turbo Intercooler |
| Displacement, No. cylinders | 3,400cc – 4 inline |
| Injection | Electronic Control w/ Common Rail |
| Aftertreatment system | EGR + DOC + SCR |
| Cooling | Air Water, Dry Air Filter |
| Power | 122 hp (90 kW) |
| Adj. Power | 122 hp (90 kW) @ 2,200 rpm |
| Maximum Torque | 368.8 lbf.ft (500 Nm) @ 1,400 rpm |
| Alternator | 12 V – 90 A |
Axels & Wheels
Front load-bearing, oscillating (±6°) with planetary reduction gears on the wheel hubs. Rear load-bearing and steering with planetary reduction gears on the wheel hubs and directly flanged gearbox.
Tires: 600/50 R22.5
Electric System
Battery: Tier 4F 12 V – 132 Ah
LED road light system, rear working lights
Steering
Assisted by means of load-sensing power steering with double displacement on 4 steering wheels; steering selection device for: 2 steering wheels, 4 steering wheels – crab steering.
4×4 Drive
Hydrostatic “automative” transmission with variable displacement pump and variable displacement hydraulic motor with electro-hydraulic control, and reverse gear control on the steering wheel. Electro-hydraulically controlled mechanical gearbox for “working speed” and “road transfer” speed.
Speed
| 4 fwd gears | 4 reverse gears | |
|---|---|---|
| I° | 0 – 2.3 mph | 0 – 2.3 mph |
| II° | 0 – 5.9 mph | 0 – 2.3 mph |
| III° | 0 – 7.4 mph | 0 – 7.4 mph |
| IV° | 0 – 18.7 mph | 0 – 7.4 mph |
Cab
Closed cab with heating system designed according to ROPS & FOPS Level II criteria, windows on three sides. Sliding window on cabin door. 180° pivoting driving post. Anatomic seat with flexible suspension and height adjustment, seat belts. Driving and equipment controls with ergonomic arrangement. LCD display with reverse camera.
Equipment Hydraulic System
Gear Pump:
Max. low rate: ……………………………… 11.89 gal/min
Max. pressure: ……………………………………. 230 bar
2 – elements distributor.
Aluminum heat exchanger for hydraulic oil cooling. Pressurized closed-circuit intake with oil filter replaceable from the outside.
