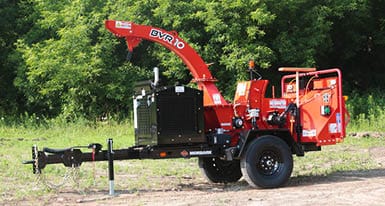

Looking for more capabilities than what the BVR10 brush chipper provides? Increase productivity with the BVR13 Brush Chipper, featuring dual feed wheels, hydraulic lift, increased horsepower, and optional winch package.

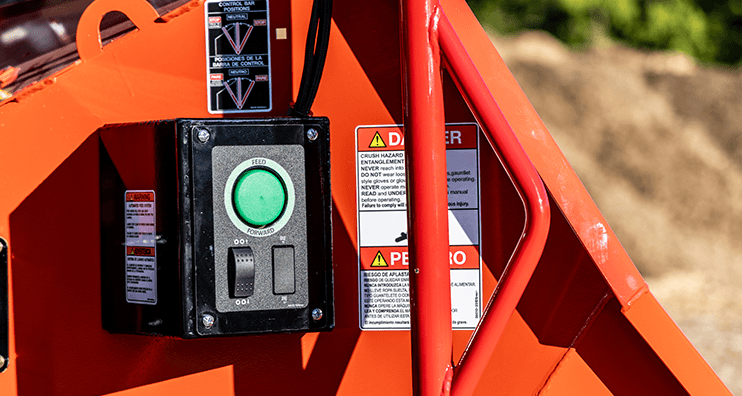

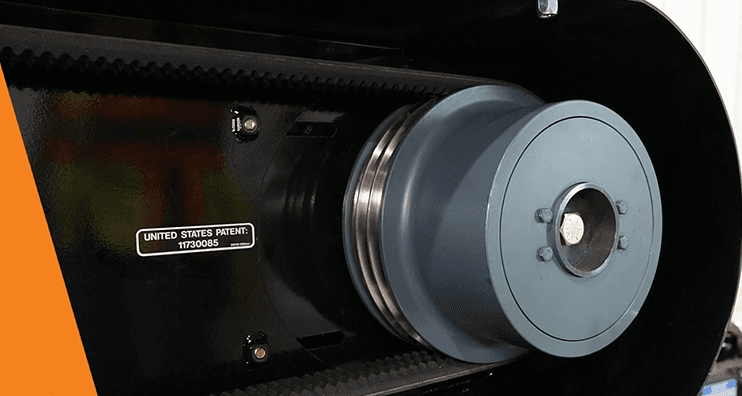

Remove the anxiety of engaging the chipper drum, damaged drive belts, and burned clutch discs and elevate your operating experience with the exclusive Morbark ZeroClutch.™ Simply start, throttle the machine to full RPM’s and engage the feed control bar. The Morbark ZeroClutch includes an integrated drum speed sensor that monitors the drum speed and prevents the clutch from engaging if material becomes stuck between the feed wheel and drum.
GENERAL | US | METRIC |
Height | 7’10” | 2.2 m |
Width | 6’7″ | 2.0 m |
Length | 15’1″ | 4.6 m |
Gross weight (approximate) | 5,200 lb | 2,721 kg |
Suspension | 6,000 lb Torsion | 2,721 kg Torsion |

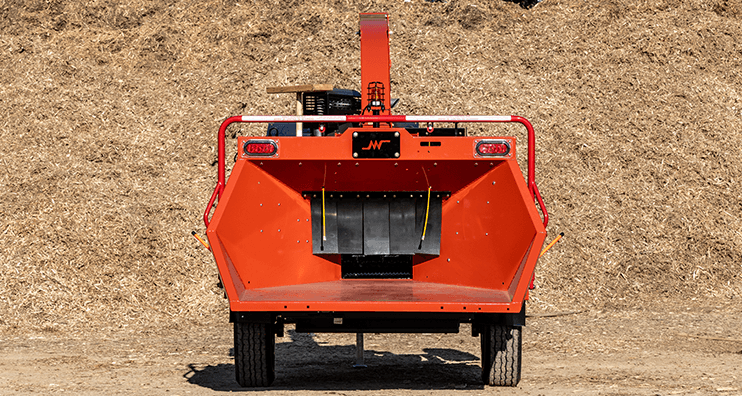

Infeed Opening (height x width) | 30″ x 60″ | 76 cm x 152.4 cm |
Drum (width x diameter) | 14″ x 17.25″ | 36 x 44 cm |
Engine | Deutz, PSI | |
Horsepower | 72-133 HP | 53-99 kW |
Fuel tank capacity | 17 gallons | 64 L |
Hydraulic oil capacity | 7 gallons | 26.5 L |
Frame | 5″ C-Channel | 12.7 cm C-Channel |
Tires | (2) 235/80R x 16″ | |
Hitch | 2.5″ Pintle, | 6.4 cm Pintle |
