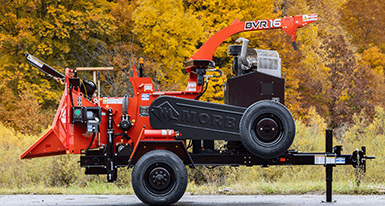

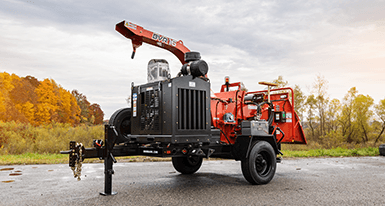

Perfect for residential tree services, power line clearance, vegetation control, maintenance contractors, and local authorities, this high-capacity, high-output chipper comes with more built-in features than any other chipper of its class. The BVR16 Brush Chipper has customer-inspired innovations that make it safer, more efficient, and reduce operating and maintenance costs.

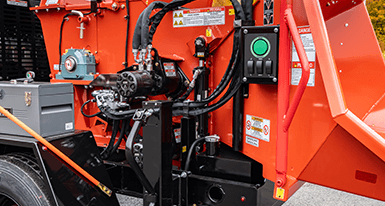

Remove the anxiety of engaging the chipper drum, damaged drive belts, and burned clutch discs and elevate your operating experience with the exclusive Morbark ZeroClutch.™ Simply start, throttle the machine to full RPM’s and engage the feed control bar. The Morbark ZeroClutch includes an integrated drum speed sensor that monitors the drum speed and prevents the clutch from engaging if material becomes stuck between the feed wheel and drum.
| GENERAL | US | METRIC |
| Height | 8’6″ | 2.6 m |
| Width | 7’4″ | 2.3 m |
| Length | 17’1″ | 5.2 m |
| Gross weight (approximate) | 8,500 lb | 3,855 kg |
| Suspension | 10,000 lb Torsion | 4,535 kg Torsion |
| Infeed Opening (height x width) | 34″ x 60″ | 86.4 cm x 153.4 cm |
| Drum (width x diameter) | 24.5″ x 24″ | 62.2 x 61 cm |
| Engine | CAT, Deutz, PSI | |
| Horsepower | 134-174 HP | 99-130 kW |
| Fuel tank capacity | 30 gallons | 113.5 L |
| Hydraulic oil capacity | 12 gallons | 45.4 L |
| Frame | 6″ C-Channel | 15.2 cm C-Channel |
| Tires | (2) 235/75R x 17.5″ | |
| Hitch | 2.5″ Pintle, | 6.4 cm Pintle |
