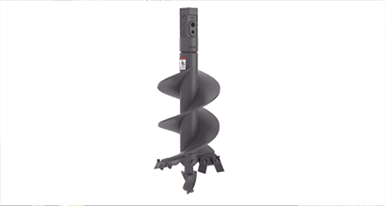

Augers Bit and Drives

Medium Duty Augers

Style

Width

Length

Weight

Ground Conditions

HDF

6″

36″

60 lb

These augers are made for light to moderate ground conditions. They feature a fabricated boring head with hardened bolt-on gage (outside) and wisdom (inside) teeth, as well as hardened fishtail point.

9″

36″

60 lb

12″

36″

83 lb

15″

36″

98 lb

18″

36″

115 lb

20″

36″

126 lb

24″

36″

164 lb

30″

36″

166 lb

36″

185 lb

Rock Augers

Style

Width

Length

Weight

Ground Conditions

ROCK

6″

36″

60 lb

These augers are made for solid, fracturable rock, frozen ground, asplalt, and compact soils.

9″

36″

75 lb

12″

36″

110 lb

18″

36″

175 lb

Heavy Duty Augers – HTF

Style

Width

Length

Weight

Ground Conditions

HTF

30″

36″

186 lb

These augers are made for tree and shrub planting.

36″

205 lb

X900 Auger Drive

Max Auger Diameter	Minimum Hydraulic Flow	Maximum Hydraulic Flow	Maximum Continuous Operating PSI	Flow	Speed	Pressure	Torque
15″	8 GPM	16 GPM	3000 PSI	8 GPM/30 LPM	64 RPM	2000 PSI	770 lb ft/1044 NM
15″	8 GPM	16 GPM	3000 PSI	12 GPM/45 LPM	95 RPM	2500 PSI	963 lb ft/1305 NM
15″	8 GPM	16 GPM	3000 PSI	16 GPM/60 LPM	127 RPM	3000 PSI	1155 lb ft/1566 NM
X1500 Auger Drive
Max Auger Diameter	Minimum Hydraulic Flow	Maximum Hydraulic Flow	Maximum Continuous Operating PSI	Flow	Speed	Pressure	Torque
30″	8 GPM	16 GPM	3000 PSI	8 GPM/30 LPM	32 RPM	2000 PSI	1541 lb ft/2089 NM
30″	8 GPM	16 GPM	3000 PSI	12 GPM/45 LPM	48 RPM	2500 PSI	1926 lb ft/2611 NM
30″	8 GPM	16 GPM	3000 PSI	16 GPM/60 LPM	64 RPM	3000 PSI	2311 lb ft/3133 NM
