Boxer 385D Mini Skid Steer
Call for Pricing
Price
Make:
Morbark
Model:
Boxer 385D Mini Skid Steer
Category:
Boxer, Morbark
| SPECIFICATION | US | METRIC |
| Engine Type | Kubota | |
| Cooling System | Air-Cooled | |
| HP/kW | 24.8 HP | 18.49 kW |
| Fuel Type | Diesel | |
| Fuel Capacity | 4.5 Gallons | 17.1 Litres |
| Hydraulic Capacity | 16 Gallons | 60.6 Litres |
| System Flow (Total) | 11 GPM | 41.6 L/min |
| Hydraulic Flow (Aux) | 8.0 GPM | 30.3 L/min |
| Hydraulic Flow (Drive) | 3.0 GPM | 11.4 L/min |
| System Pressure | 2800 PSI | 19305.3 kPa |
| Engine Warranty | 3 years | |
| Product Warranty | 1 year | |
| Track Gauge | 27.5″ | 699 mm |
| Track Width | 7″ | 180 mm |
| Weight (No Attachment) | 1913 lb | 867.72 kg |
| Length (No Attachment) | 68″ | 1727 mm |
| Length (w/Bucket) | 93″ | 2362 mm |
| Width (Overall) | 35″ | 889 mm |
| Height (Boom Lowered) | 48″ | 1219.2 mm |
| Height (Boom Raised) | 92″ | 2337 mm |
| Hinge Pin Height | 70″ | 1778 mm |
| Dump Height | 54″ | 1372 mm |
| Dump Angle | 34 Degrees | |
| Reach | 28″ | 711 mm |
| Tip Capacity | 1,100 lb | 498.9 kg |
| Operating Capacity, 35% of tip load | 385 lb | 174.6 kg |
| Ground Clearance | 5″ | 127 mm |
| Ground Speed | 3.4 MPH | 5.5 km/h |
| Ground Pressure | 3.8 PSI | 26.2 kPa |
Similar Products
Adapter Plates
Call for Pricing
Weld-On Universal Adapters
Duty Class
Weight
Standard
75 lb
H...

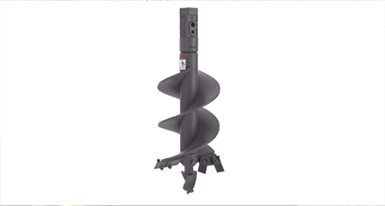

Augers Bit and Drives
