Buckets

Call for Pricing

Price

Print
Call Us
Make:
Morbark
Model:
Buckets
Category:
Boxer, Morbark

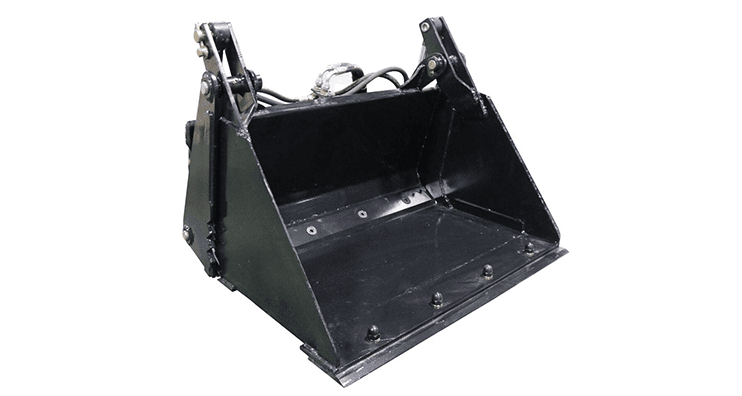

4 in 1 Multi Purpose Buckets (hoses not included)
Duty Class Width Weight Depth Length Capacity Height Open Height Closed Holes Hole Spacing
Tractor Duty 60″ 380 lb 28″ 34.5″ 29″ 27″ BOE not avail.
72″ 430 lb 28″ 34.5″ 29″ 27″ BOE not avail.
Standard Duty 60″ 585 lb 35″ 34.5″ .53 yd 35″ 28″ 7 9″
66″ 620 lb 35″ 34.5″ .58 yd 35″ 28″ 7 10″
72″ 655 lb 35″ 34.5″ .64 yd 35″ 28″ 7 11″
Heavy Duty 72″ 900 lb 38″ 34.5″ .75 yd 35″ 28″ 9 9″
78″ 935 lb 38″ 34.5″ .80 yd 35″ 28″ 9 9″
84″ 975 lb 38″ 34.5″ .87 yd 35″ 28″ 9 9″
Heavy Duty with Weld-on Teeth 72″ 958 lb 38″ 34.5″ .75 yd 35″ 28″ BOE not avail.
78″ 993 lb 38″ 34.5″ .80 yd 35″ 28″ BOE not avail.
84″ 1040 lb 38″ 34.5″ .87 yd 35″ 28″ BOE not avail.

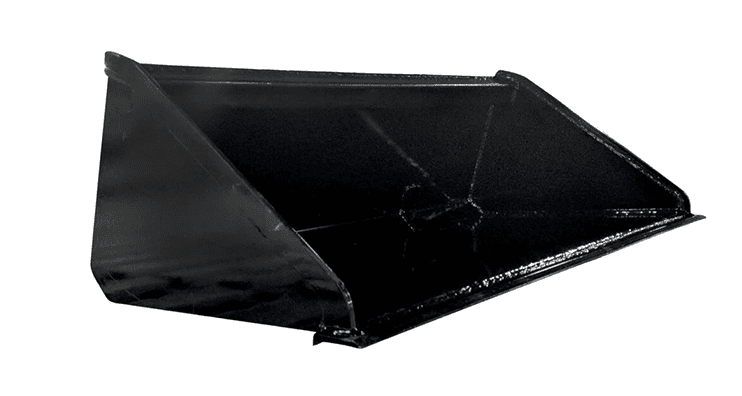

Light Material Buckets
Duty Class Width Configuration Weight Height Depth Capacity Holes Hole Spacing
Tractor Duty 72″ with edge 595 lb 26.35″ 29.54″ .6 yd 11 6.5″
78″ with edge 614 lb 26.98″ 31.49″ .75 yd 9 9″
84″ with edge 653 lb 26.98″ 31.74″ .75 yd 9 9.75″
Standard Duty 84″ without edge 740 lb 35″ 41″ 1.6 yd 9 9.75″
84″ with edge 943 lb 35″ 41″ 1.6 yd 9 9.75″
96″ without edge 880 lb 35″ 41″ 2 yd 9 10.83″
96″ with edge 1112 lb 35″ 41″ 2 yd 9 10.83″
Standard Duty for Wheel Loaders 54″ without edge 490 lb 31″ 30.3″ .5 yd 5 10.83″
60″ without edge 598 lb 29″ 31.8″ .66 yd 7 9″
60″ without edge 720 lb 34″ 41.75″ 1 yd 7 9″
72″ without edge 760 lb 30″ 36.5″ 1 yd 7 11″
78″ without edge 1000 lb 44″ 49.75″ 2 yd 7 10.83″
84″ without edge 975 lb 36″ 55″ 2 yd 8 11″

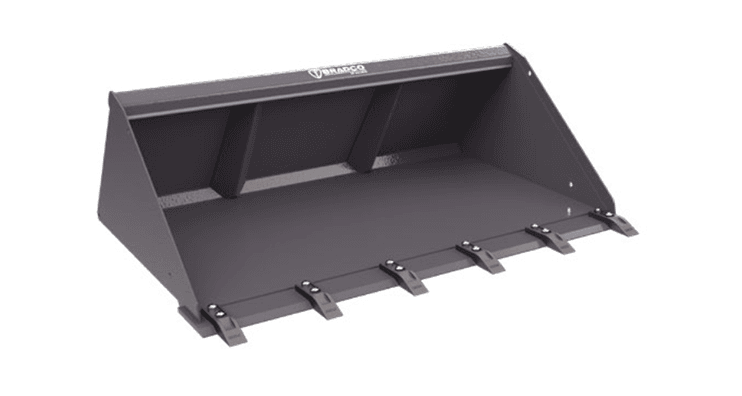

Low Profile Buckets

Series Width Height Depth Weight Holes Hole Spacing
Standard Floor
(32″ Floor)		 60″ 20″ 32″ 429 lb 7 9″
68″ 20″ 32″ 465 lb 7 10″
72″ 20″ 32″ 473 lb 7 11″
78″ 20″ 32″ 543 lb 9 9″
84″ 20″ 32″ 683 lb 9 9.75″
Long Floor 68″ 20″ 36″ 506 lb 7 10″
72″ 20″ 36″ 533 lb 7 11″
75″ 20″ 36″ 719 lb 8 10″
78″ 20″ 36″ 608 lb 9 9″
80″ 20″ 36″ 748 lb 7 12″
84″ 20″ 36″ 728 lb 9 9.75″

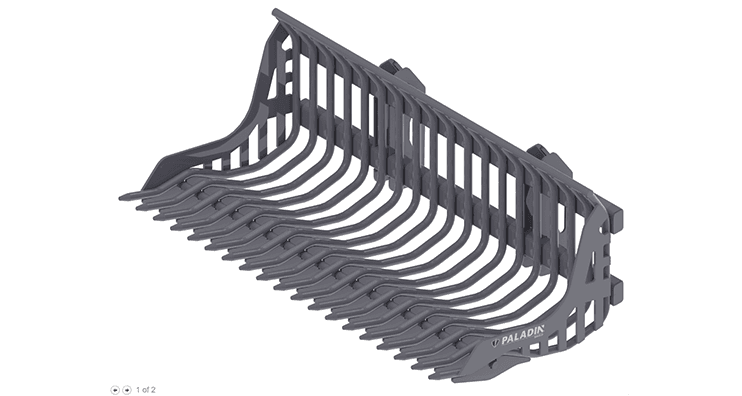

Rock Buckets
Duty Class Width Tine Spacing Weight Grapple Opening Bucket Height Shipping Width Grapple Depth No Mounting Depth with Mounting
Heavy Duty 66″ 2″ 680 lb 60″ 22″ 38″ 43″ 49.8″
75″ 2″ 742 lb 60″ 22″ 38″ 43″ 49.8″
75″ 2″ 625 lb 60″ 22″ 38″ 43″ 49.8″
84″ 2″ 692 lb 60″ 22″ 38″ 43″ 49.8″
